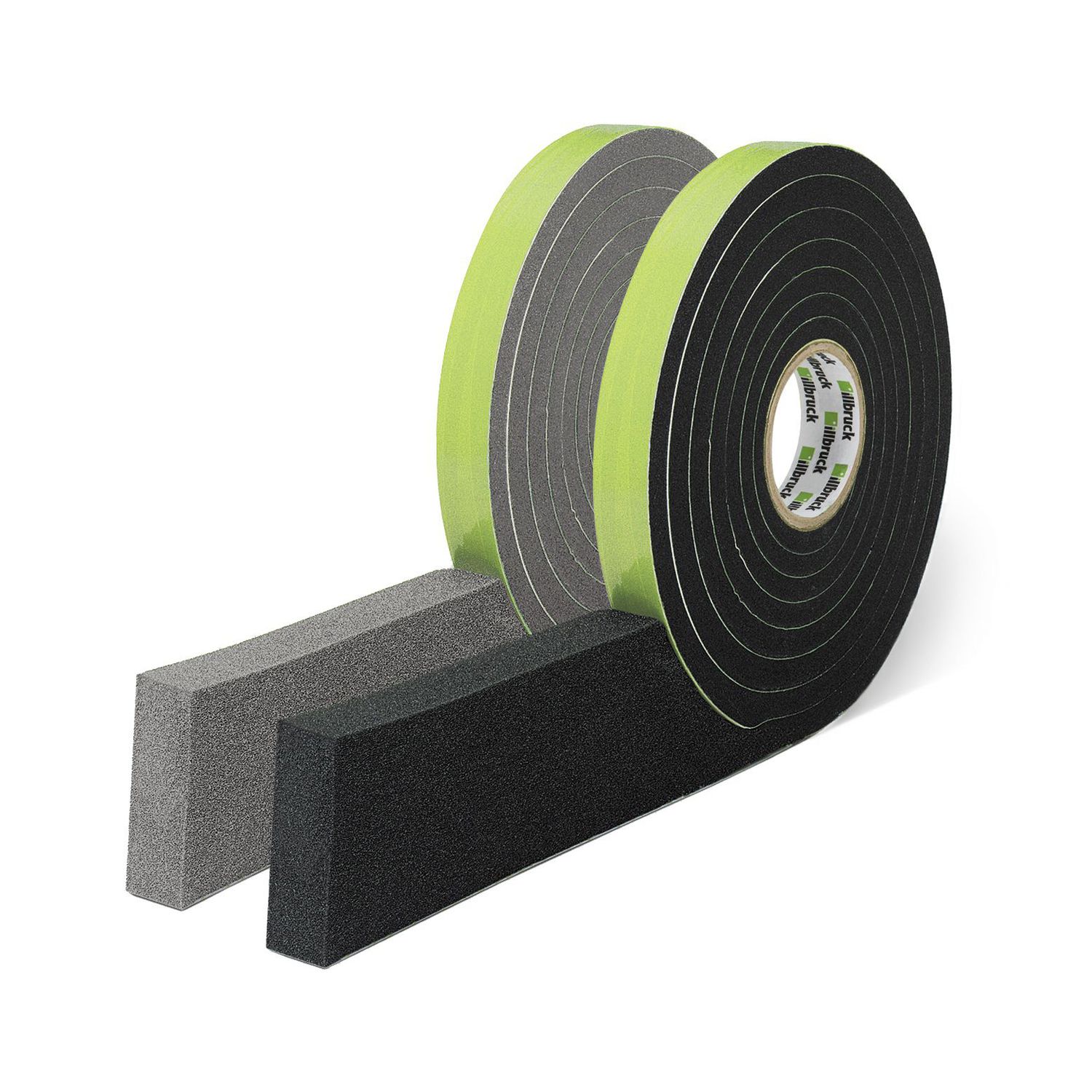

TP600 Compriband 600
TP600 is an impregnated joint sealing tape for use in a wide variety of movement joints including window perimeter seals and other applications. Weather tight against the most severe combinations of wind and rain, it satisfies most expectations as an external weather seal in building and civil engineering applications. With full BBA approval, the product has been extensively tested and has a proven reputation across both the UK and Europe. BBA Certificate N° 96/3309 and, as part of the i3 system, N° 12/4891.
Key benefits
- 15 year performance guarantee
- Weather seal for wind-driven rain
- Breathable – for vapour diffusion
- Continually expands and contracts to accommodate movement whilst still sealing the joints
- Thermal and acoustic insulation
Standard sizes
| Joint / Gap Size to be Filled mm (a) | Joint Depth / Tape Width mm (b) | Tape Order Reference | Roll Length (m) |
|---|---|---|---|
| 2 | 10 | 10 / 2 | 12.5 |
| 3 | 10 | 10 / 3 | 10 |
| 3 | 20 | 20 / 3 | 10 |
| 3-7 | 10 | 10 / 3-7 | 8 |
| 3-7 | 15 | 15 / 3-7 | 8 |
| 3-7 | 20 | 20 / 3-7 | 8 |
| 5-10 | 10 | 10 / 5-10 | 5.6 |
| 5-10 | 15 | 15 / 5-10 | 5.6 |
| 5-10 | 20 | 20 / 5-10 | 5.6 |
| 7-12 | 15 | 15 / 7-12 | 4.3 |
| 7-12 | 20 | 20 / 7-12 | 4.3 |
| 7-12 | 25 | 25 / 7-12 | 4.3 |
| 8-15 | 20 | 20 / 8-15 | 3.3 |
| 8-15 | 30 | 30 / 8-15 | 3.3 |
| 10-18 | 20 | 20 / 10-18 | 4.5 |
| 10-18 | 25 | 25 / 10-18 | 4.5 |
| 10-18 | 30 | 30 / 10-18 | 4.5 |
| 13-24 | 30 | 30 / 13-24 | 5.2 |
| 17-32 | 35 | 35 / 17-32 | 4 |
| 22-40 | 40 | 40 / 22-40 | 2.7 |
Technical data
| Property | Test method | Result |
|---|---|---|
| Building Classification | DIN 4102 | B1, self-extinguishing, P-NDS 04-229 |
| Fire Classification | EN13501-1 | Bs1, d0 |
| Exposure Class for Impregnated Foam Tapes | DIN 18542 | BG1 |
| Thermal Conductivity | DIN 52612 | λ 10 < 0.048 W/m/K |
| Vapour Resistivity | DIN 52615 | μ < 100 |
| Resistance to Root Penetration | DIN 4062 | The requirements of DIN standards are met |
| Air Permiability | DIN 18542 | α < 1.0 m³ / [h.m.(daPa)2/3] |
| Weathertight Against Drving Rain | DIN 18542 / DIN EN 1027 | 600 Pa |
| Compatibility with conventional construction materials | DIN 18542 | Suderinama |
| Life Expectancy | > 25 years | |
| Service Temperature | -30°C to +90°C | |
| Storage | Store rolls horizontally and in original caton between +1°C and 25°C in dry conditions between use to prevent expansion during storage. | |
| Shelf Life | 2 years when stored in its original unopened containers. |
